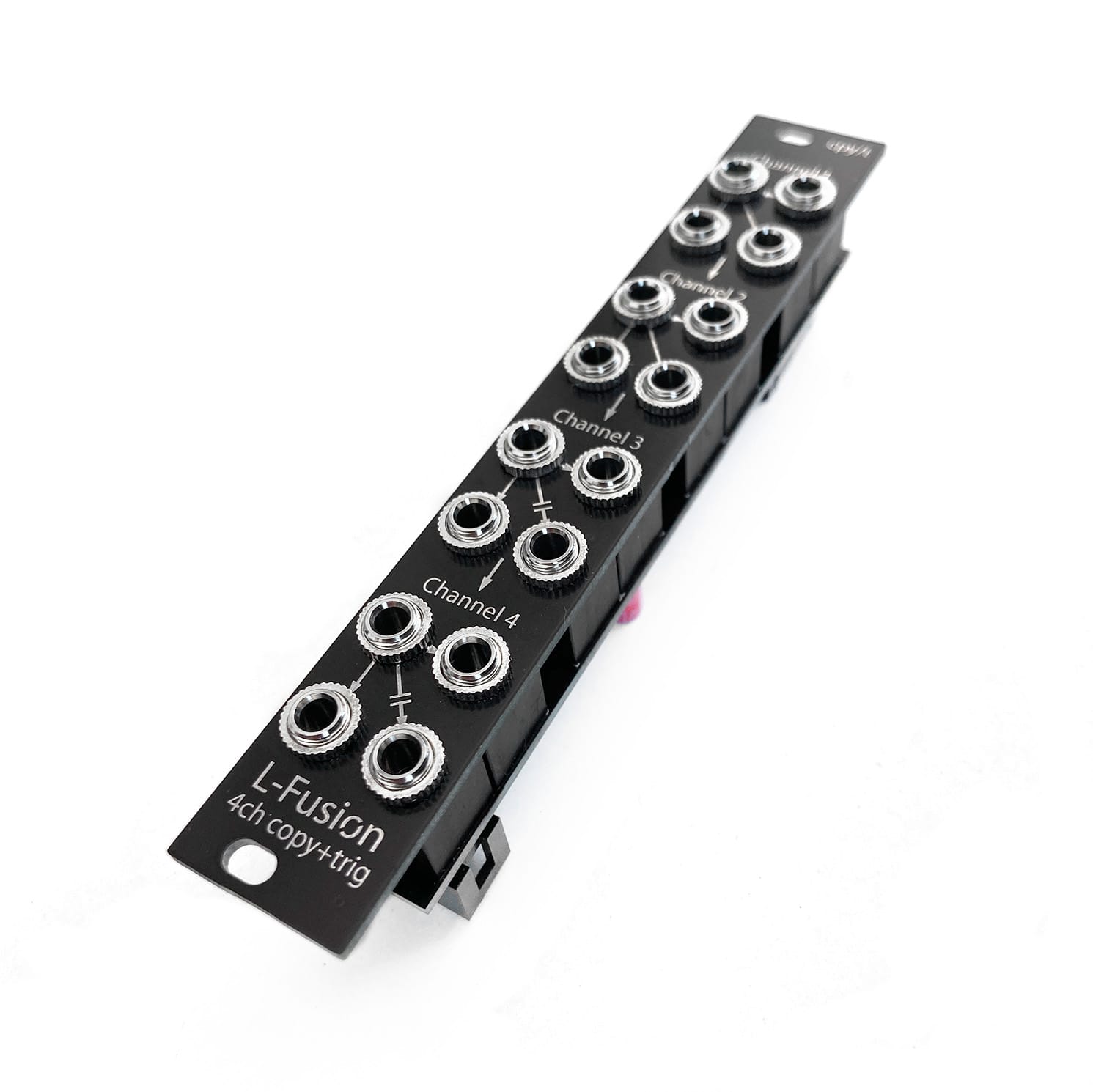

Precision multiple with internal chaining between channels

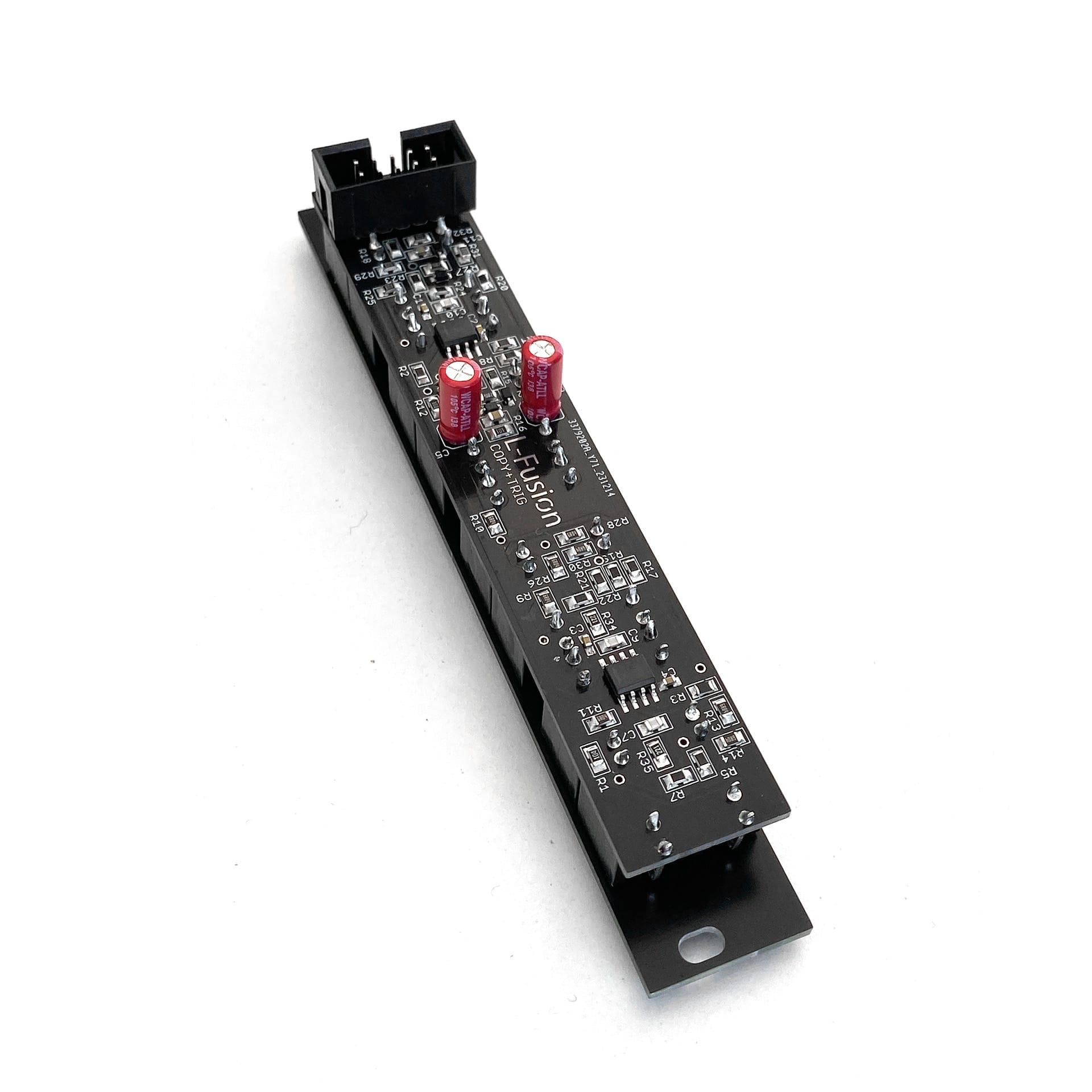

Active quad buffered mult module engineered in compact single PCB design. Module features 4 precision 1 to 3 signal multiple channels with 0.1% gain precision and very small offset suitable for audio as well as VCO pitch and other CV.

Buffers are internally chained if their its inputs are not connected, allows daisy chaining 2x to 6 or 1x to 12 copies.

Our Dual VCO

Gate to pulse converters

Channels 3 and 4 have integrated gate to pulse converters on one of their outputs that generate 2ms pulse on rising edge of gate input.

These gate to pulse converters are designed to be paired with our 4HP Dual Analog AR Envelope Follower module generating both Attack/Release envelope for VCA and percussive Decay slope suitable for filter FM, oscillator pitch, percussive sounds and other funky parameters. Due to diode physics pulse output has a voltage drop of around 0.9V.

• Dual Envelope Follower
• Quad VCA

Module revision 2.0

Temperature stable high end C0G pulse converter capacitors for perfectly even pulse under all conditions.

New module version features elongated screw holes and audio grade Burr-Brown audio OpAmps rated with max 0.5mV offset as well as extra parts to allow true 0-ohm impedance on its pitch buffers.

Plan your Eurorack synthesizer on ModularGrid

Our Quad Mult with Gate to Pulse converter module is available on ModularGrid where  you can visually build your own Euroack synthesizer rack, also view synthesizers that other artists have built using this module.
